Active Power Transfer Formula Reviewer
and Interactive Calculator

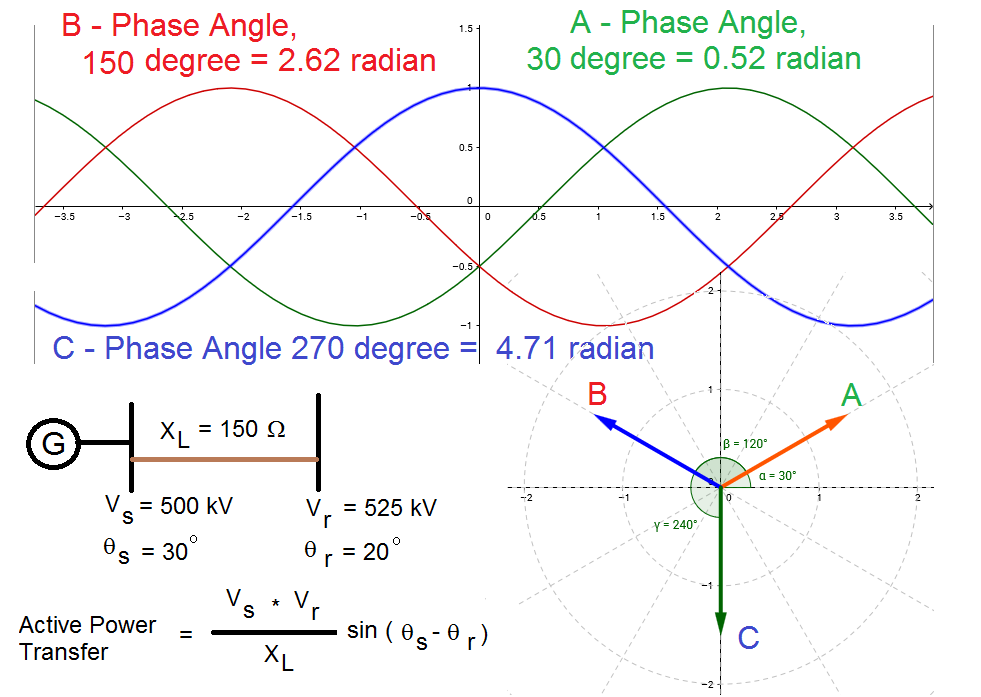

Find the Active Power Transfer

Given sending voltage,
Vs = 500 kV ; sending voltage phase angle theta, θ = 30°

receiveing voltage,
Vr = 525 kV; receiving voltage phase angle theta,
θ = 20°
Transmission line series reactance = 150 Ω

How to use: Touch white button input box. Next enter new number. Answer in 1 second.

MW
=
kV * kV

* sin ( - )

Ω




How to calculate or show me the
Calculator / Formula / Equations
