Interactive Personal Augmented Intelligent Assistant in Circuit Analysis Use Case 3

Enter highest number to show answer:
THEN CLICK HERE

Try 4

Enter highest number to show input box:
THEN CLICK HERE

Try 3

Enter highest number to show problem:
THEN CLICK HERE

Try 5
Show me the answer


Solved using AI expert system algorithm:
Voltage drop at E_R3 = volts
Voltage drop at E_R5 = volts
Voltage source, E = volts
Answer, I1 = Amp
Answer, I2 = Amp

When R 1 and R 4 are equal in resistance and R 3 and R 5 are also equal in resistance value,
I2 = 0 (at least very close to zero)

Show me the input box


I-total =

R1 = R3 =

R4 = R5 =

R2 =

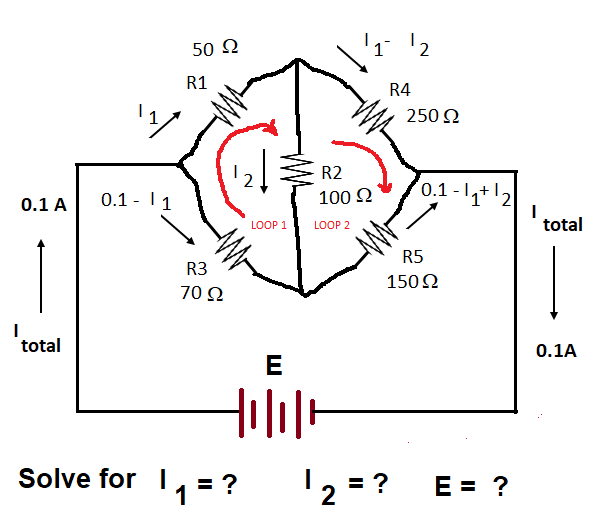

Compute the current 1, current 2, and voltage E
at that moment of time or at that instant.

I1 + I2 = Equation 1

I1 + I2 = Equation 2
